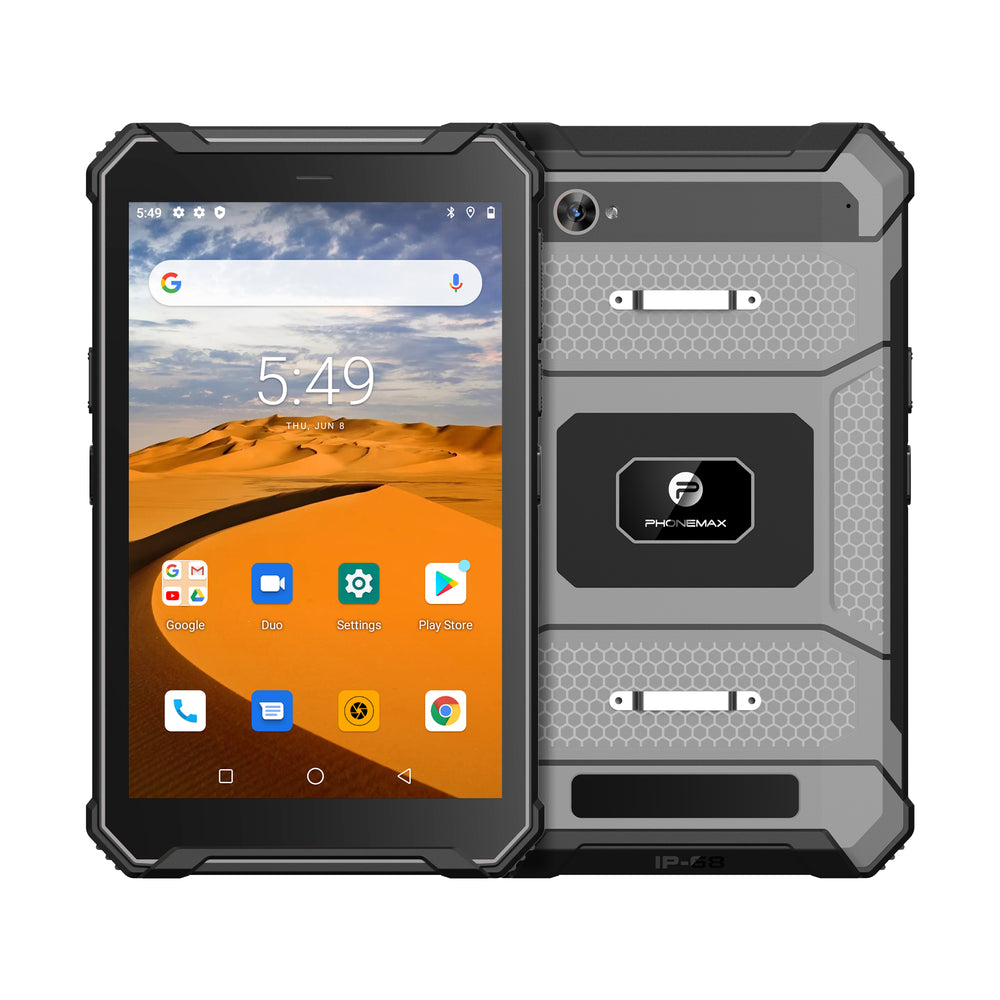

Phonemax T1 – Android 16 Rugged Tablet, 6GB+128GB
Built for work and outdoor use.
View full product overview
Key specifications
| Product type | Industrial rugged Android tablet |
|---|---|
| Operating system | Android 16 |
| Processor | MediaTek Helio G80 |
| Memory and storage | 6GB RAM + 128GB storage |
| Display | 8-inch high-brightness display |
| Battery | 12,000mAh |
| Charging | 18W charging |
| Protection rating | IP68 and IP69K |
| Network and version | 4G FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B21 / B25 / B26 / B28A / B28B / B66 / B71.; 4G TDD-LTE: B34 / B38 / B39 / B40 / B41.; 3G WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19.; 2G GSM: B2 / B3 / B5 / B8.; |
| 4G bands | Gray Android 16 only — FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B21 / B25 / B26 / B28A / B28B / B66 / B71; TDD: B34 / B38 / B39 / B40 / B41 |
| 3G bands | Gray Android 16 only — WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19 |
| 2G bands | Gray Android 16 only — GSM: B2, B3, B5, B8 |
Android 16 · 6GB RAM + 128GB storage · Gray. The All-New Phonemax T1 is an 8-inch rugged tablet for field forms, maps, inspection photographs and work records.
Choose your T1 version
This listing is the Android 16 model. The Android 10 clearance tablet is sold separately; more RAM or storage does not mean a newer operating system.
| Version | Memory and storage | Product listing |
|---|---|---|
| Android 16 · Gray | 6GB + 128GB | This All-New T1 listing |
| Android 10 · Gray or Green | 8GB + 256GB | View Android 10 clearance T1 |
Plan the work you need to complete
- Read and complete inspection forms and work orders on an 8-inch screen.
- Capture photographs and keep the associated job records together.
- Prepare documents and supported map areas for the connectivity available on site.
These are suggested workflows, not measured customer results. Validate the required apps, network and accessories on the selected configuration before deployment.
All-New T1 specifications
| Operating system | Android 16 |
|---|---|
| Processor | MediaTek Helio G80 |
| Memory and storage | 6GB RAM + 128GB storage |
| Display | 8-inch |
| Battery and charging | 12,000mAh; 18W charging |
| Listed protection | IP68 / IP69K under specified conditions |
| Honeywell barcode scanner | Not included in this listed configuration |
Battery capacity does not establish full-shift runtime. If dedicated scanning is required, request an exact hardware proposal before ordering; do not infer a scanner from the T1 name or assume it can be fitted later.
Delivery and order questions
Most in-stock orders are processed within 1–3 working days. Transit time starts after dispatch. Qualifying orders from US$99 to US$10,000 may receive free Express Delivery when offered at checkout; the complete destination address determines eligible methods and charges. See the Shipping Policy for delivery estimates, customs and destination conditions.
Payment methods available for your order are displayed at checkout. If payment does not complete, contact order support with the product, country, approximate attempt time and error message. Do not send full card details. See payment instructions and order terms, returns and refunds and warranty coverage.
For a team purchase, review tablet procurement options and send your quantity, destination, applications and required accessories through Contact Us.
Compare T1 with N1 before choosing
Read the T1 vs N1 comparison if you are deciding between field forms and navigation-led use. The N1 is positioned for rally navigation and digital roadbooks; this T1 is the general field-work configuration. Confirm required app support and any Google Play certification requirement for the exact supplied build; Android version alone does not establish either.
Buying several units? Request a quotation for tablets with the exact version, quantity, delivery country and required accessories.
Supported mobile network bands
Android 16 · 6GB RAM + 128GB storage · Gray. Global band configuration described in the 2026 catalog.
4G FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B21 / B25 / B26 / B28A / B28B / B66 / B71.
4G TDD-LTE: B34 / B38 / B39 / B40 / B41.
3G WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19.
2G GSM: B2 / B3 / B5 / B8.
Source: Phonemax 2026 Product Catalog. Band overlap alone does not guarantee carrier activation, VoLTE, emergency calling or full network compatibility. Check the selected version with your carrier before purchase.
- Performance & memory
- Helio G80 octa-core, up to 2.0GHz · Gray: 6GB RAM + 128GB storage, Android 16
- Display & cameras
- 8-inch HD 800×1280, 1000 nits · optional FHD 1080×1920 · 8MP front · 32MP rear
- Battery & audio
- 12,000mAh · 18W fast charging · dual 2W speakers
- Connectivity & protection
- NFC · Bluetooth 5.0 · Wi-Fi 5 · multi-GNSS · IP68/IP69K
Official products and manufacturer support.
Encrypted checkout with trusted payment providers.
Help before and after your purchase.
1-Year Limited Warranty Eligible manufacturing defects are covered for 12 months from the purchase date. View warranty details
This product includes a 12-month limited warranty covering eligible manufacturing defects. Damage caused by misuse, unauthorized repairs, accidents, liquid exposure beyond the product's rated protection, or normal wear is not covered. Proof of purchase is required for warranty service.








Phonemax T1 – Android 16 Rugged Tablet, 6GB+128GB
- Product type
- Industrial rugged Android tablet
- Display
- 8-inch high-brightness display
- Operating system
- Android 16
- Processor
- MediaTek Helio G80
- Memory & storage
- 6GB RAM + 128GB storage
- Storage expansion
- microSD expansion
- Battery
- 12,000mAh
- Charging
- 18W charging
- Cameras
- 8MP front + 32MP rear
- Rugged protection
- IP68 and IP69K
- Navigation
- Global satellite positioning
- Audio
- Dual speakers
- SIM
- Dual SIM with separate microSD slot
- Scanner
- Current listed configuration: without Honeywell barcode scanner
- Available versions
- Gray 6GB+128GB Android 16 configuration described in the 2026 catalog.
- Mobile network
- 4G FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B21 / B25 / B26 / B28A / B28B / B66 / B71.; 4G TDD-LTE: B34 / B38 / B39 / B40 / B41.; 3G WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19.; 2G GSM: B2 / B3 / B5 / B8.;
- Other features
- Network specification source: Phonemax 2026 Product Catalog, PDF page 28
- 4G bands
- Gray Android 16 only — FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B21 / B25 / B26 / B28A / B28B / B66 / B71; TDD: B34 / B38 / B39 / B40 / B41
- 3G bands
- Gray Android 16 only — WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19
- 2G bands
- Gray Android 16 only — GSM: B2, B3, B5, B8
Specifications can vary by version, region and manufacturing batch. Please select the correct network and memory configuration before ordering.

Some historical reviews were migrated from our previous review platform. Verified Purchase labels are applied automatically to new reviews collected through Judge.me.
PRODUCT QUESTIONS
Frequently asked questions
Is the Phonemax T1 suitable for industrial and outdoor work?
Yes. The T1 is designed for field operations, construction, logistics, inspections and outdoor use, with IP68/IP69K protection and a rugged structure for demanding environments.
How large is the T1 battery?
The T1 uses a 12,000mAh battery and supports 18W charging. Actual operating time depends on display brightness, wireless connections, navigation, applications and ambient temperature.
What performance does the T1 provide?
The Gray T1 has 6GB RAM, 128GB storage and Android 16. The Green T1 has 8GB RAM, 128GB storage and Android 10. Choose the matching color and configuration on this page.
Does this T1 include a Honeywell barcode scanner?
The currently listed T1 option is the 6GB RAM and 128GB storage version without the Honeywell barcode scanner. Contact Phonemax before ordering if your project requires a scanner-equipped T1 Pro configuration.
Which navigation and smart functions does the T1 support?
The T1 supports NFC and multiple satellite-navigation systems, including GPS, GLONASS and Galileo, for field navigation, compatible access applications and work workflows.
Questions & answers
More buying and use questions
Is this the Android 10 clearance T1?
No. This All-New T1 listing identifies Android 16 with 6GB RAM and 128GB storage. The Android 10 8GB + 256GB clearance configuration has its own separate listing.
Are a rally mount, vehicle charger and navigation app included?
Confirm each accessory and any software licence before ordering. A tablet’s navigation capability does not mean that a specific mount, vehicle power kit or paid app is supplied.
Need help with your selected configuration? Contact Phonemax.
