Author and review: Jayden Jiang, Brand Operations at Phonemax; evidence review batch A closed on 20 August 2026. The specification matrix is an editorial audit method; no Phonemax unit was calibrated or laboratory-tested for this draft. Transparency note: The publisher, Phonemax, sells the thermal-camera phones named below. Product-page claims remain separate from measurement evidence and independent standards work.
Buying rule
The most useful thermal-phone specifications are detector resolution, field of view, temperature range, stated accuracy and conditions, thermal sensitivity, focus distance, refresh rate, calibration method and export workflow. A thermal-camera label alone does not prove measurement accuracy or suitability for electrical, building, mechanical or safety decisions.
Separate detection from measurement
A device may reveal a relative hot or cold pattern without being accurate enough to support a temperature threshold. Ask whether the camera is intended for qualitative inspection, quantitative measurement or both. Then match the evidence to the job.

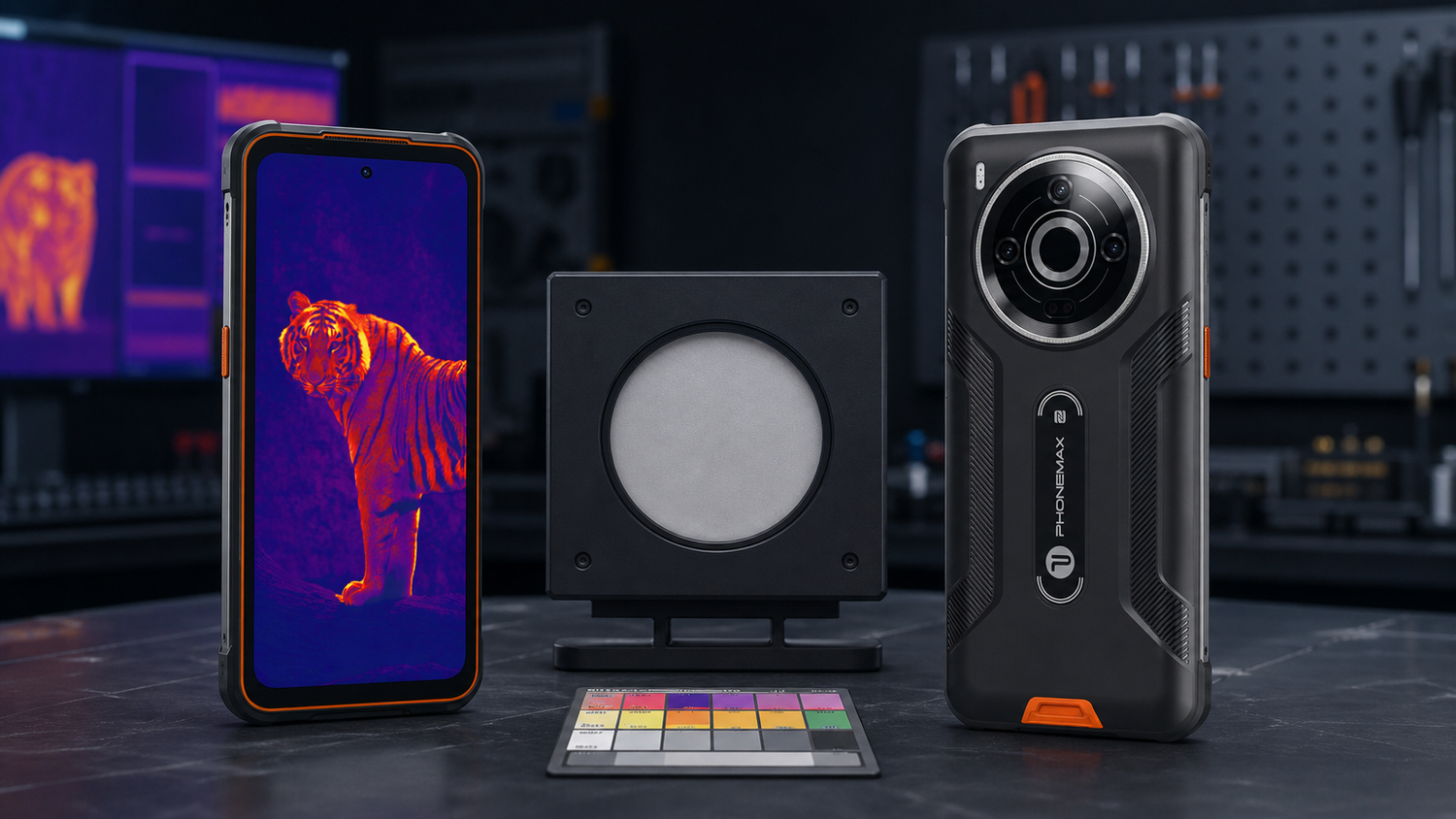

Phonemax lists the P20 Pro as a 5G thermal-imaging rugged phone and the R4 GT as a compact thermal-imaging and night-vision rugged phone. Buyers should use the current model pages and supplier documentation for the exact thermal module; do not transfer results between these models.
There is useful third-party evidence for the R4GT, but it answers a narrower question than calibration. In TechRadar's R4GT review, the thermal app displayed heat signatures and occasionally paused while recalibrating. Root-Nation's separate R4GT review also exercised the thermal and night-vision functions. These are real-use observations from individual review samples—not laboratory accuracy results, fleet reliability evidence or evidence for the P20 Pro.
Evidence table
| Specification | Why it matters | Verification |
|---|---|---|
| Detector resolution | Detail in the thermal image | Native thermal pixels, not upscaled output |
| Field of view | Scene coverage and target pixel size | Test at real distance |
| Temperature range | Whether expected targets fit | Confirm range and mode |
| Accuracy | Confidence in measured values | Read tolerance and environmental conditions |
| Sensitivity | Ability to distinguish small differences | Compare uniform and low-contrast targets |
| Export | Audit and reporting | Test radiometric data, images and metadata |
Pilot protocol
Use known reference targets and representative surfaces. Control distance, emissivity settings, reflections, airflow and warm-up. Compare multiple units and retain raw outputs. For safety-critical or regulated inspection, use equipment and procedures approved for that purpose; a phone should not be treated as a certified diagnostic instrument without evidence.
NIST's thermal-camera calibration research shows why calibration, measurement uncertainty and surface technique matter when temperature values are used quantitatively. NIST also notes that useful imaging properties depend on the task: contrast, temperature range, spatial resolution, uniformity and thermal sensitivity answer different questions. These sources support the audit method, not the performance of either Phonemax model.
Claims that need careful interpretation
Can thermal imaging see through walls?
Generally no. It measures infrared radiation from visible surfaces and may reveal surface patterns.
Does one third-party review validate every unit?
No. It describes the tested sample, version and conditions only.
Which Phonemax model is best for thermal work?
This article does not rank them. Compare exact specifications, size, network needs and measured workflow performance.
Next step: Run the compact-phone ergonomics test before creating a hardware shortlist.
Put the chosen units through a controlled fleet pilot. For vehicle deployments, verify storage and charging limits as a separate acceptance item.
Sources: NIST thermal-camera calibration procedures; NIST thermal imaging performance overview; TechRadar R4GT review; Root-Nation R4GT review; Phonemax P20 Pro product page; Phonemax R4 GT product page
